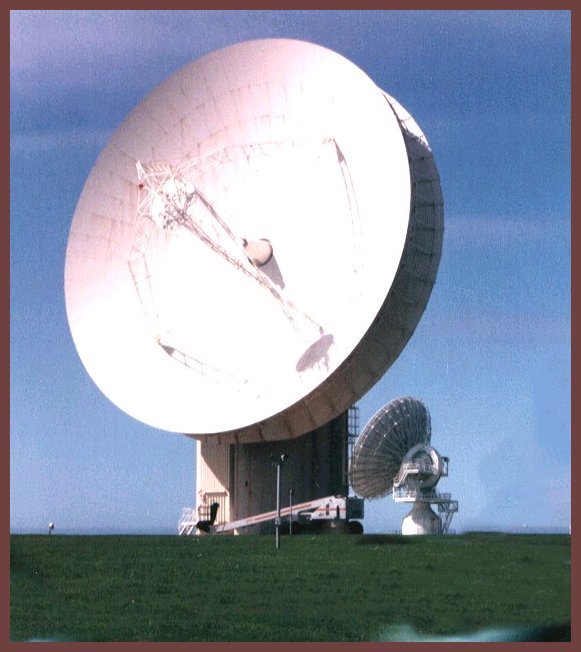

Illustration : 30 metre antennae at the Composite Signals Organisation Station, Morwenstow, England,
intercepting communications from Atlantic Ocean and Indian Ocean regional satellites. (D Campbell)

•
  •   Interception Capabilities 2000



  Contents 1. Organisations and methods What is communications intelligence? UKUSA alliance Other Comint organisations How intelligence works Planning Access and collection Processing Production and dissemination     2. Intercepting international communications International Leased Carrier (ILC) communications High frequency radio Microwave radio relay Subsea cables Communications satellites Communications techniques ILC communications collection Access Operation SHAMROCK High frequency radio interception Space interception of inter-city networks Sigint satellites COMSAT ILC collection Submarine cable interception Intercepting the Internet Covert collection of high capacity signals New satellite networks     3. ECHELON and Comint production The "Watch List" New information about ECHELON sites and systems Westminster, London : Dictionary computer Sugar Grove, Virginia : COMSAT interception at ECHELON site Sabana Seca, Puerto Rico and Leitrim, Canada : COMSAT interception sites Waihopai, New Zealand : Intelsat interception at ECHELON site   ILC processing techniques   4. Comint and Law Enforcement Misrepresentation of law enforcement interception requirements Law enforcement communications interception - policy development in Europe     5. Comint and economic intelligence Tasking economic intelligence Disseminating economic intelligence The use of Comint economic intelligence product Panavia European Fighter Aircraft consortium and Saudi Arabia Thomson CSF and Brazil Airbus Industrie and Saudi Arabia International trade negotiations Targeting host nations     6. Comint capabilities after 2000 Developments in technology Policy issues for the European Parliament   Technical annexe Broadband (high capacity multi-channel) communications Communications intelligence equipment Wideband extraction and signal analysis Filtering, data processing, and facsimile analysis Traffic analysis, keyword recognition, text retrieval, and topic analysis Speech recognition systems Continuous speech recognition Speaker identification and other voice message selection techniques   "Workfactor reduction"; the subversion of cryptographic systems   Glossary and definitions   Footnotes




  •




    Summary

1. Communications intelligence (Comint) involving the covert interception of foreign communications has been practised by almost every advanced nation since international telecommunications became available. Comint is a large-scale industrial activity providing consumers with intelligence on diplomatic, economic and scientific developments. The capabilities of and constraints on Comint activity may usefully be considered in the framework of the "intelligence cycle" (section 1).

2. Globally, about 15-20 billion Euro is expended annually on Comint and related activities. The largest component of this expenditure is incurred by the major English-speaking nations of the UKUSA alliance. This report describes how Comint organisations have for more than 80 years made arrangements to obtain access to much of the world's international communications. These include the unauthorised interception of commercial satellites, of long distance communications from space, of undersea cables using submarines, and of the Internet. In excess of 120 satellite systems are currently in simultaneous operation collecting intelligence (section 2).

3. The highly automated UKUSA system for processing Comint, often known as ECHELON, has been widely discussed within Europe following a 1997 STOA report. That report summarised information from the only two primary sources then available on ECHELON. This report provides original new documentary and other evidence about the ECHELON system and its involvement in the interception of communication satellites (section 3). A technical annexe give a supplementary, detailed description of Comint processing methods.

4. Comint information derived from the interception of international communications has long been routinely used to obtain sensitive data concerning individuals, governments, trade and international organisations. This report sets out the organisational and reporting frameworks within which economically sensitive information is collected and disseminated, summarising examples where European commercial organisations have been the subject of surveillance (section 4).

5. This report identifies a previously unknown international organisation - "ILETS" - which has, without parliamentary or public discussion or awareness, put in place contentious plans to require manufacturers and operators of new communications systems to build in monitoring capacity for use by national security or law enforcement organisations (section 5).

6. Comint organisations now perceive that the technical difficulties of collecting communications are increasing, and that future production may be costlier and more limited than at present. The perception of such difficulties may provide a useful basis for policy options aimed at protective measures concerning economic information and effective encryption (section 6).

7. Key findings concerning the state of the art in Comint include :

• • Comprehensive systems exist to access, intercept and process every important modern form of communications, with few exceptions (section 2, technical annexe);
  • Contrary to reports in the press, effective "word spotting" search systems automatically to select telephone calls of intelligence interest are not yet available, despite 30 years of research. However, speaker recognition systems - in effect, "voiceprints" - have been developed and are deployed to recognise the speech of targeted individuals making international telephone calls;
  • Recent diplomatic initiatives by the United States government seeking European agreement to the "key escrow" system of cryptography masked intelligence collection requirements, and formed part of a long-term program which has undermined and continues to undermine the communications privacy of non-US nationals, including European governments, companies and citizens;
  • There is wide-ranging evidence indicating that major governments are routinely utilising communications intelligence to provide commercial advantage to companies and trade.

•
  •
    •

    1. Organisations and methods


  What is communications intelligence?

1. Communications intelligence (Comint) is defined by NSA, the largest agency conducting such operations as "technical and intelligence information derived from foreign communications by other than their intended recipient". Comint is a major component of Sigint (signals intelligence), which also includes the collection of non-communications signals, such as radar emissions. Although this report deals with agencies and systems whose overall task may be Sigint, it is concerned only with Comint.

2. Comint has shadowed the development of extensive high capacity new civil telecommunications systems, and has in consequence become a large-scale industrial activity employing many skilled workers and utilising exceptionally high degrees of automation.

3. The targets of Comint operations are varied. The most traditional Comint targets are military messages and diplomatic communications between national capitals and missions abroad. Since the 1960s, following the growth of world trade, the collection of economic intelligence and information about scientific and technical developments has been an increasingly important aspect of Comint. More recent targets include narcotics trafficking, money laundering, terrorism and organised crime.

4. Whenever access to international communications channels is obtained for one purpose, access to every other type of communications carried on the same channels is automatic, subject only to the tasking requirements of agencies. Thus, for example, NSA and its British counterpart GCHQ, used Comint collected primarily for other purposes to provide data about domestic political opposition figures in the United States between 1967 and 1975.

• UKUSA alliance

5. The United States Sigint System (USSS) consists of the National Security Agency (NSA), military support units collectively called the Central Security Service, and parts of the CIA and other organisations. Following wartime collaboration, in 1947 the UK and the US made a secret agreement to continue to conduct collaborative global Comint activities. Three other English-speaking nations, Canada, Australia and New Zealand joined the UKUSA agreement as "Second Parties". The UKUSA agreement was not acknowledged publicly until March 1999, when the Australian government confirmed that its Sigint organisation, Defence Signals Directorate (DSD) "does co-operate with counterpart signals intelligence organisations overseas under the UKUSA relationship". The UKUSA agreement shares facilities, tasks and product between participating governments.

6. Although UKUSA Comint agency staffs and budgets have shrunk following the end of the cold war, they have reaffirmed their requirements for access to all the world's communications. Addressing NSA staff on his departure in 1992, then NSA director Admiral William Studeman described how "the demands for increased global access are growing". The "business area" of "global access" was, he said, one of "two, hopefully strong, legs upon which NSA must stand" in the next century

• Other Comint organisations

7. Besides UKUSA, there at least 30 other nations operating major Comint organisations. The largest is the Russian FAPSI, with 54,000 employees. China maintains a substantial Sigint system, two stations of which are directed at Russia and operate in collaboration with the United States. Most Middle Eastern and Asian nations have invested substantially in Sigint, in particular Israel, India and Pakistan.

• How intelligence works

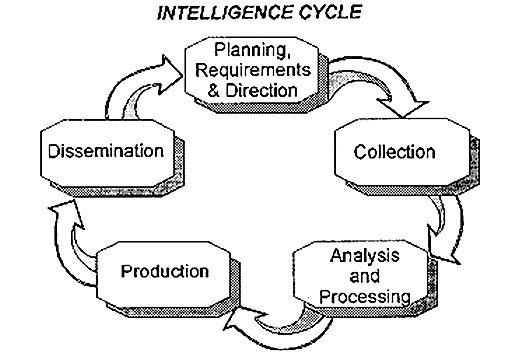

8. In the post cold war era, Comint interception has been constrained by recognisable industrial features, including the requirement to match budgets and capabilities to customer requirements. The multi-step process by means of which communications intelligence is sought, collected, processed and passed on is similar for all countries, and is often described as the "intelligence cycle". The steps of the intelligence cycle correspond to distinct organisational and technical features of Comint production. Thus, for example, the administration of NSA's largest field station in the world, at Menwith Hill in England and responsible for operating over 250 classified projects, is divided into three directorates: OP, Operations and Plans; CP, Collection Processing; and EP, Exploitation and Production.

• Planning

9. Planning first involves determining customer requirements. Customers include the major ministries of the sponsoring government - notably those concerned with defence, foreign affairs, security, trade and home affairs. The overall management of Comint involves the identification of requirements for data as well as translating requirements into potentially achievable tasks, prioritising, arranging analysis and reporting, and monitoring the quality of Comint product.9.

10. Once targets have been selected, specific existing or new collection capabilities may be tasked, based on the type of information required, the susceptibility of the targeted activity to collection, and the likely effectiveness of collection.

• Access and collection

11. The first essential of Comint is access to the desired communications medium so that communications may be intercepted. Historically, where long-range radio communications were used, this task was simple. Some important modern communications systems are not "Comint friendly" and may require unusual, expensive or intrusive methods to gain access. The physical means of communication is usually independent of the type of information carried. For example, inter-city microwave radio-relay systems, international satellite links and fibre optic submarine cables will all usually carry mixed traffic of television, telephone, fax, data links, private voice, video and data.

12. Collection follows interception, but is a distinct activity in that many types of signals may be intercepted but will receive no further processing save perhaps technical searches to verify that communications patterns remain unchanged. For example, a satellite interception station tasked to study a newly launched communications satellite will set up an antenna to intercept all that the satellite sends to the ground. Once a survey has established which parts of the satellite's signals carry, say, television or communications of no interest, these signals will not progress further within the system.

13. Collection includes both acquiring information by interception and passing information of interest downstream for processing and production. Because of the high information rates used in many modern networks, and the complexity of the signals within them, it is now common for high speed recorders or "snapshot" memories temporarily to hold large quantities of data while processing takes place. Modern collection activities use secure, rapid communications to pass data via global networks to human analysts who may be a continent away. Selecting messages for collection and processing is in most cases automated, involving large on-line databanks holding information about targets of interest.

• Processing

14. Processing is the conversion of collected information into a form suitable for analysis or the production of intelligence, either automatically or under human supervision. Incoming communications are normally converted into standard formats identifying their technical characteristics, together with message (or signal) related information (such as the telephone numbers of the parties to a telephone conversation).

15. At an early stage, if it is not inherent in the selection of the message or conversation, each intercepted signal or channel will be described in standard "case notation". Case notation first identifies the countries whose communications have been intercepted, usually by two letters. A third letter designates the general class of communications: C for commercial carrier intercepts, D for diplomatic messages, P for police channels, etc. A fourth letter designates the type of communications system (such as S for multi-channel). Numbers then designate particular links or networks. Thus for example, during the 1980s NSA intercepted and processed traffic designated as "FRD" (French diplomatic) from Chicksands, England, while the British Comint agency GCHQ deciphered "ITD" (Italian diplomatic) messages at its Cheltenham headquarters.

16. Processing may also involve translation or "gisting" (replacing a verbatim text with the sense or main points of a communication). Translation and gisting can to some degree be automated.

• Production and dissemination

17. Comint production involves analysis, evaluation, translation and interpretation of raw data into finished intelligence. The final step of the intelligence cycle is dissemination, meaning the passing of reports to the intelligence consumers. Such reports can consist of raw (but decrypted and/or translated) messages, gists, commentary, or extensive analyses. The quality and relevance of the disseminated reports lead in turn to the re-specification of intelligence collection priorities, thereby completing the intelligence cycle.

18. The nature of dissemination is highly significant to questions of how Comint is exploited to obtain economic advantage. Comint activities everywhere are highly classified because, it is argued, knowledge of the success of interception would be likely to lead targets to change their communications methods to defeat future interception. Within the UKUSA system, the dissemination of Comint reports is limited to individuals holding high-level security "SCI" clearances. Further, because only cleared officials can see Comint reports, only they can set requirements and thus control tasking. Officials of commercial companies normally neither have clearance nor routine access to Comint, and may therefore only benefit from commercially relevant Comint information to the extent that senior, cleared government officials permit. The ways in which this takes place is described in Section 5, below.

19. Dissemination is further restricted within the UKUSA organisation by national and international rules generally stipulating that the Sigint agencies of each nation may not normally collect or (if inadvertently collected) record or disseminate information about citizens of, or companies registered in, any other UKUSA nation. Citizens and companies are collectively known as "legal persons". The opposite procedure is followed if the person concerned has been targeted by their national Comint organisation.

20. For example, Hager has described how New Zealand officials were instructed to remove the names of identifiable UKUSA citizens or companies from their reports, inserting instead words such as "a Canadian citizen" or "a US company". British Comint staff have described following similar procedures in respect of US citizens following the introduction of legislation to limit NSA's domestic intelligence activities in 1978. The Australian government says that "DSD and its counterparts operate internal procedures to satisfy themselves that their national interests and policies are respected by the others ... the Rules [on Sigint and Australian persons] prohibit the dissemination of information relating to Australian persons gained accidentally during the course of routine collection of foreign communications; or the reporting or recording of the names of Australian persons mentioned in foreign communications". The corollary is also true; UKUSA nations place no restrictions on intelligence gathering affecting either citizens or companies of any non-UKUSA nation, including member states of the European Union (except the UK).
